Beam Imaging Solutions

Beam Imaging Solutions is dedicated to new innovative imaging solutions for particle and photon (UV, X-ray) beams and offers a wide range of imaging products to fit your particular application and budget.   Products range from stand alone phosphor screens to high resolution beam imaging systems with 2-D and 3-D imaging capabilities.   Also specialize in microchannel plate (MCP) and phosphor screen based imaging arrays for imaging ion, electron and neutral beams as well as X-rays and UV.

---

high resolution beam imaging systems ( hrbis )
high resolution beam imaging system	hrbis
High resolution multi-configurable coherent fiber-optic based systems with combination microchannel plate (MCP) and phosphor screen type imaging of electron, ion and neutral beams, as well as X-rays and UV.   Two- and three-dimensional beam profile analysis achievable with multi-configurable systems.

---

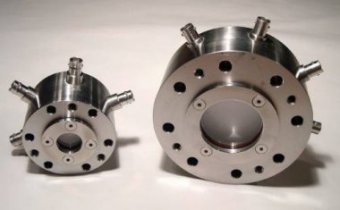

flange mount beam observation systems ( BOS )
Combination microchannel plate (MCP) with phosphor screen type imaging systems are incorporated into standard size vacuum flanges with viewports  for quick and easy profile analysis of electron, ion and neutral beams, as well as X-rays and UV.

---

phosphor screens
Custom and standard size and type phosphor screens are available for a wide range of imaging applications.

---

quadrupole ion deflector ( QID-900 )
Ion beam deflection at right angles with little distortion to the beam profile is achievable with the QID-900 series quadrupole ion deflectors.

---

Beam Imaging Solutions       1610 Pace Street, Unit 900, #303       Longmont, Colorado 80501 USA       phone: +1-303-859-7313     fax: +1-720-494-1850        webSite:   http://www.beamimaging.com/

represented by

G-tech, Corp.   365-1, Sayamagahara,   Iruma-shi,   Saitama, 358-0032   phone# +81-(0)4-2935-2777      fax# +81-(0)4-2935-2778
