ELJEN Technology responds to demands of various types of custom made scintillation detectors, either specially formulated plastic and/or liquid scintillators, detector cells and assemblies by particular requests.  This page is exhibiting examples of custom made detectors which were made by customers' special requests.
  liquid -- plastic phoswich detector cell, spherical liquid cell made by slow decay timing plastic scintillator filled by liquid scintillator to improve neutron and gamma discrimination ratio.

spherical plastic scintillator vessel, made by EJ-299-13 slow decay timing type filled by EJ-399-06 liquid scintillator to detect high energy neutron with high flux gamma environment with high n/gamma discrimination ratio

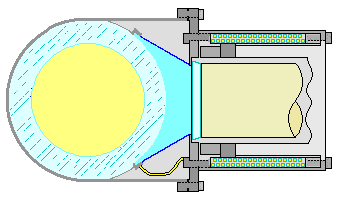

right schematic shows cell structure concept, pale blue colored hollow sphere exhibits EJ-299-13 slow timing plastic scintillator and light yellow sphere inside exhibits EJ-399-06 liquid scint.
spherical phoswich cell

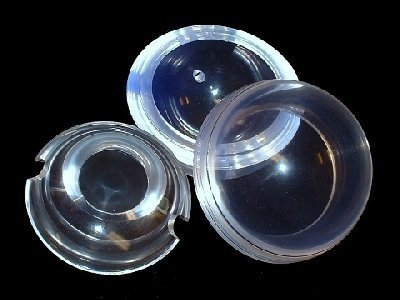

sphere EJ-299-13 and lightguide left photo shows 3 inch inner diameter EJ-299-13 plastic scintillator vessel (front / back semispheres) and funnel shape UVT light-guide

below photo shows the outer housing shell

front mount plastic to liquid cell
