CsI(Tl) crystals and array assemblies

CsI(Tl) 2-dimensional array example

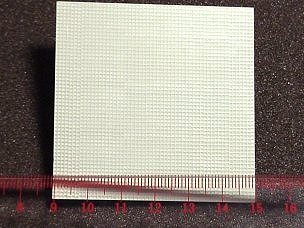

Examples of CsI(Tl) 2-D array by Proteus. Photograph shows 3025 pixels array (55 x 55 elements) of 1 mm cubic crystals for ORNL project. Crystal thickness is determined to detect 135-iodine isotope low energy gamma ray (approx 30keV). Each crystal cells light output is read by position sensitive PhotoMultiplier Tube.

CsI(Tl) 1-dimensional array
An example of CsI(Tl) 1-D array by Proteus.

Photograph shows 16 elements single line array of
1.270 mm x 2.032 mm x 4.572 mm deep crystals
with 0.305 mm spacing.
outer dimensions are
width: 25.197mm, depth: 3.962mm, height: 4.877mm.

physical and scintillation properties of CsI(Tl)
Photons / MeV	45,000 ~ 65,000	Light output [ NaI(Tl) = 100% ]	50% ~ 100%
effective Z#	51	density	4.51 g / cm³
melting point	621 °C	hardness [Moh]	2
hygroscopicity	slightly	peak wavelength	540nm
decay constant	1,100 nSec	reflactive index [ @560nm ]	1.79

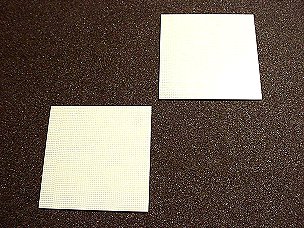

also PROTEUS responds to various custom made 2-dimensional CsI(Tl) arrays requests which example photos are shown at right.
